Durable Thread Tungsten Carbide Rod With Two Sprial Holes For Making Drill

Brand Name : UBT

Model Number : Tungsten Carbide Rods

Certification : ISO

Place of Origin : China

MOQ : 1kgs

Price : 80~100usd/kg

Payment Terms : L/C, , T/T, Western Union,paypal

Supply Ability : 5tons/month

Delivery Time : 10~20days

Packaging Details : Packing in paper carton

Name : Tungsten Carbide Thread Rods With Two Sprial Holes For Making Drill

Material : Tungsten carbide + Coblat

Type : Power Tool Parts

Application : Cutting tools

Uage : Twist drill, milling cutter

Power Tool Parts : Excellent wear resistance,good performance

Surface : Blank or polish

Helical degree : 30° and 40°

Contact Now

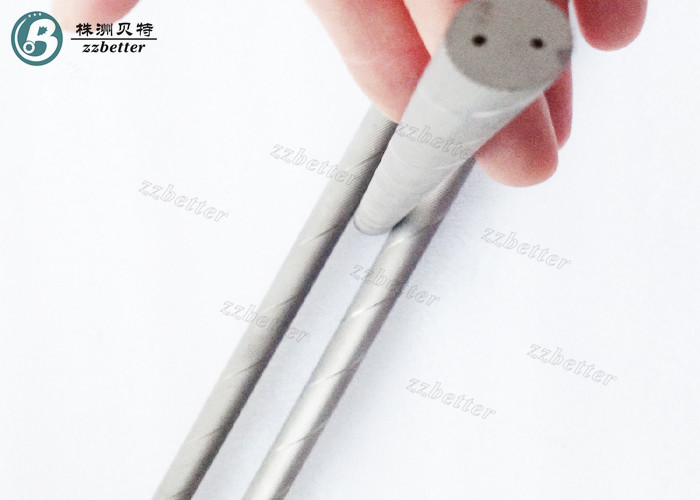

Tungsten Carbide Thread Rods With Two Sprial Holes For Making Drill

Tungsten carbide twisted rods used in make the drill bits reamers .automobile special cutters, printed circuit board special cutters, engine special cutters, horology processing special cutters, integral vertical milling cutter, graver and etc. Besides, they can be used for making of cemented carbide stamping head, core bar and perforation tools.

Our advantages:

100% virgin tungsten carbide raw material

ISO 9001 Certification

12 year experience on tungsten carbide

Advanced technology, excellent quality control

Type D(mm) d(mm) TK a Pitch
D Tol. d Tol. TK Tol. a P 1 P 2 P 3 Tol.
BΦ6.3×3Φ0.5×2.9×LB 6.3 2.5 0.5 ±0.15 2.2 0/-0.4 ≤0.15 21.68 22.46 23.28 ±0.42
BΦ8.3×3Φ0.7×4.0×LB 8.3 2.5 0.65 ±0.15 2.7 0/-0.4 ≤0.15 28.91 29.95 31.04 ±0.56
BΦ10.3×3Φ0.85×5.1×LB 10.3 2.75 0.8 ±0.15 3.5 0/-0.4 ≤0.20 36.14 37.44 38.8 ±0.70
BΦ12.3×3Φ1.1×6.3×LB 12.3 2.75 0.9 ±0.15 4.2 0/-0.6 ≤0.30 43.37 44.93 46.55 ±0.84
BΦ14.3×3Φ1.4×7.3×LB 14.3 3.5 1 ±0.20 4.7 0/-0.6 ≤0.37 50.6 52.42 54.31 ±0.98
BΦ16.3×3Φ1.6×8.3×LB 16.3 3.5 1.2 ±0.20 5.5 0/-0.8 ≤0.40 57.82 59.9 62.07 ±1.12
BΦ18.3×3Φ1.7×9.5×LB 18.3 3.5 1.4 ±0.20 6.3 0/-0.8 ≤0.50 65.05 67.39 69.83 ±1.26
BΦ20.3×3Φ1.9×10.2×LB 20.3 3.5 1.5 ±0.20 7.1 0/-0.8 ≤0.50 72.28 74.88 77.59 ±1.40

Note: D<18.3,L>100,L Tolerance0~+7;L<100,L Tolerance0~+5.D≥18.3,L Tolerance+3~+10.
